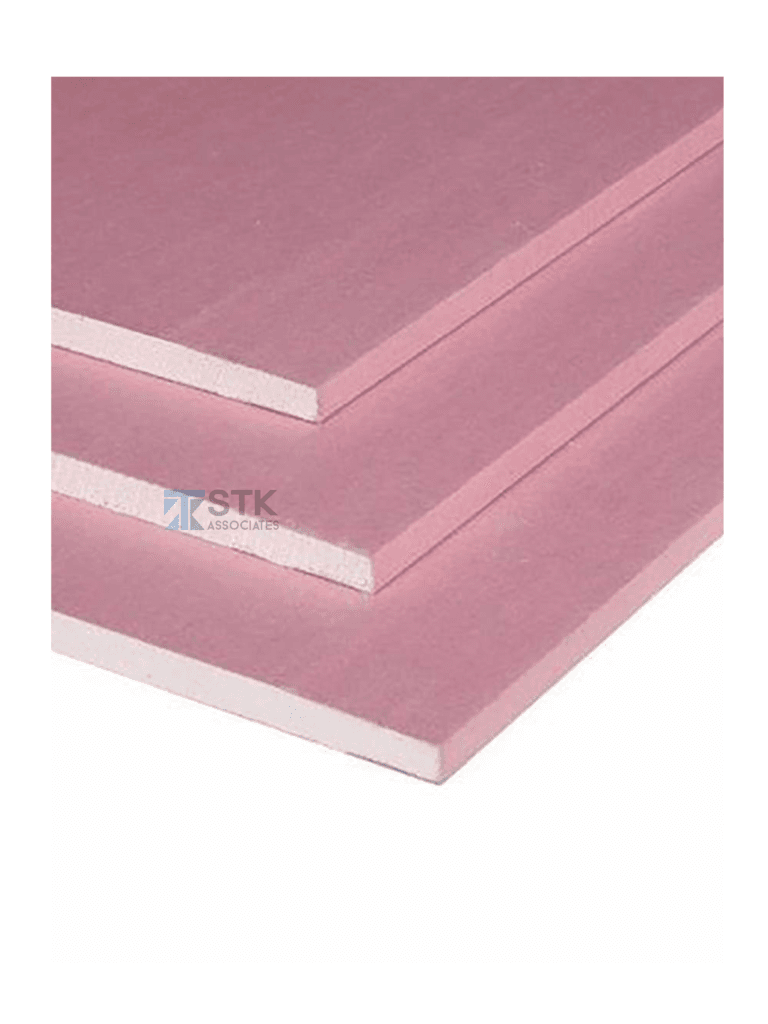

fireline plasterboard
Gyproc Fireline Board is gypsum based interior Wall & Ceiling product used in areas where High Fire Resistance Performance is required to restrict fire to pass from one side of wall to the other side. Gyproc Fireline Board’s gypsum core incorporates glass fibers & other fire resistive additives that are encased & firmly bonded to strong pink colored paper liners.
Specifications
- Size: 1830 mm X 1220 mm & 2440 mm X 1220 mm
- Thickness: 12.5 mm & 15 mm
- Identification: Pink face paper, Brown reverse side paper
- Manufacturing Standards : Complies with EN 520 –Type F & IS 2095
Applications
- Suitable for Application where High Level of Fire Protection is required from 60 minutes to 240 minutes across all segments.
Benefits
- Enhance fire resistance
- Increased structural safety
- Improved fire containment
- Durable and long lasting
- Versatility in design and application
What is Gyproc Fireline Board?
Gyproc Fireline Board is a gypsum-based interior wall and ceiling product designed for areas requiring high fire resistance. It features a gypsum core reinforced with glass fibres and fire-resistant additives, encased with strong pink-coloured paper liners
What are the specifications of Gyproc Fireline Board?
Sizes: 1830 mm x 1220 mm and 2440 mm x 1220 mm (also available in other lengths such as 2700 mm and 3000 mm by some suppliers)Thickness: 12.5 mm and 15 mmEdges: Typically tapered edge along length and square edge along widthIdentification: Pink face paper and brown reverse side paperStandards: Complies with EN 520 Type F and Indian Standard IS 2095 Part 1:2023
What applications are suitable for Gyproc Fireline Board?
It is suitable for any application needing high fire protection, including:Drywalls and partitionsFalse ceilingsBeam and column encasementInternal walls requiring fire resistance from 60 to 240 minutes
What benefits does Gyproc Fireline Board provide?
Enhanced fire resistance to help restrict fire spread and protect structural elementsIncreased structural safety and fire containmentDurable and long-lasting materialVersatile in design and application, suitable for different interior configurationsContributes to acoustic performance when used in appropriate assemblies
How is Gyproc Fireline Board identified during installation?
It is easily identified by its pink face paper with a brown back paper. The thickness and compliance marks are usually printed on the board edge or face
What fire resistance duration can be achieved with Gyproc Fireline Board?
When installed as part of a system, fire resistance can range from 60 minutes up to 240 minutes, depending on board thickness, layering, framing, and installation methodology
Can Gyproc Fireline Boards be used for acoustic insulation?
Yes, when installed within a complete system configuration with appropriate jointing and additional elements, it can contribute positively toward the required sound insulation levels
What installation guidelines should be followed?
Boards should be installed on suitable framing (metal or timber), with fixing screws placed at least 13mm from edgesJoints should be staggered and finished with proper taping and jointing compounds for fire and acoustic performanceCut edges should be placed at internal angles when possible to maintain integrity
Are Gyproc Fireline Boards suitable for exterior or wet areas?
No, they are primarily for interior drylining. For areas exposed to moisture, water and fire-resistant variants should be used instead.
How should Gyproc Fireline Boards be stored?
Store in dry, covered environments away from extreme temperatures exceeding 49°C and protected from weather elements to maintain board quality
