Foil Back Gypsum Board

Foil Back Gypsum Board consists of gypsum plaster core encased and bonded in heavy-duty paper liners. It has got a metalized polyester film at the back of the plasterboard giving characteristic of 85% Solar reflectance. The film helps to reflect the heat and hence reduce the heat transmission.

Foil Back Gypsum Board

Popular Brands Available

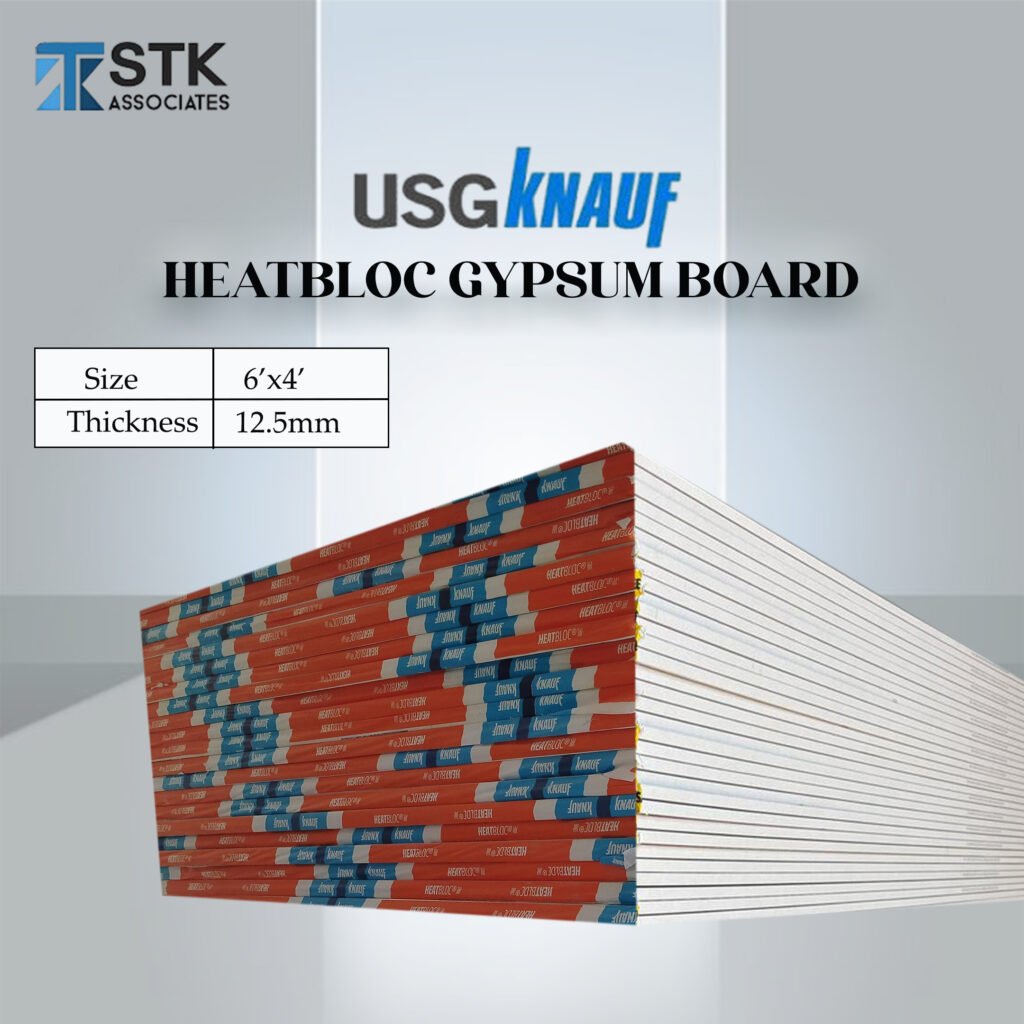

HEATBLOC® Gypsum Plasterboard

It consists of gypsum plaster core encased and bonded in heavy-duty paper liners. It has got a metalized polyester film at the back of the plasterboard giving characteristic of 85% Solar reflectance. The film helps to reflect the heat and hence reduce the heat transmission.


Specifications

* Edges: Tapered & Square
* Size: 1830 mm X 1220mm
* Thickness: 12.5 mm



Application

* HEATBLOC® is suited for enhanced thermal resistance in wall linings drywall partitions & False ceiling applications.

Foilbacked Plasterboard

Gyproc Foilbacked Board 9mm is backed with aluminium foil and could reflect heat radiation by 95%. It is recommended for using with internal concealed ceiling where heat protections are needed as attic, garret room, etc.


SPECIFICATIONS

* Identification : Grey face paper
* Back : Metallised polyester film
* Edges : Tapered & Square
* Size : 1830 mm X 1220mm
* Thickness : 12.5 mm



Application

* Gyproc Foilbacked Board is used for partition, linings and suspended ceiling systems in industrial and commercial buildings.

Gyproc
Foilbacked Board

What is HEATBLOC® Gypsum Plasterboard?

HEATBLOC® gypsum plasterboard consists of a gypsum plaster core encased and bonded in heavy-duty paper liners, with a metalized polyester film on the back that provides approximately 85% solar reflectance, helping to reduce heat transmission.

What are the specifications of HEATBLOC® plasterboard?

Edges: Tapered and square edges availableSize: 1830 mm x 1220 mmThickness: 12.5 mm

What is the function of the metalized polyester film on the back of HEATBLOC® boards?

The metalized polyester film reflects up to 85% of solar radiation, which reduces heat absorption and transmission, contributing to enhanced thermal resistance in building interiors.

Where can HEATBLOC® gypsum boards be applied?

HEATBLOC® is suitable for:Wall liningsDrywall partitionsFalse ceiling applications where improved thermal resistance is desired.

What benefits does HEATBLOC® provide in construction?

Reduces heat transfer through walls and ceilingsEnhances indoor thermal comfortSupports energy efficiency by lowering cooling loadsEasy to handle and install due to standard gypsum board propertiesSuitable for both residential and commercial interiors

Can HEATBLOC® boards be painted or finished with standard interior finishes?

Yes, after proper installation and jointing, HEATBLOC® boards can be finished with paint or other decorative treatments commonly used for gypsum boards.

Is HEATBLOC® suitable for exterior applications?

HEATBLOC® is intended primarily for interior use in wall linings, partitions, and ceilings to improve thermal resistance. For exterior applications, specialized exterior-grade products are recommended.

How does HEATBLOC® contribute to energy savings?

By reflecting solar heat and reducing heat transmission, HEATBLOC® helps in lowering cooling demands in buildings, thus reducing energy consumption and associated costs.

What are the installation considerations for HEATBLOC®?

Installation follows standard gypsum board practices ensuring joints are properly taped and finished. Care should be taken to keep the metalized film intact and avoid damage for optimal thermal performance.

How is HEATBLOC® identified on site?

Typically, HEATBLOC® boards can be identified by the standard gypsum board appearance on the front, with the distinctive metalized polyester film visible on the back side after installation or in packaging.
